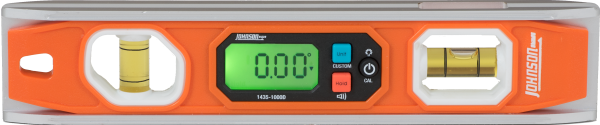

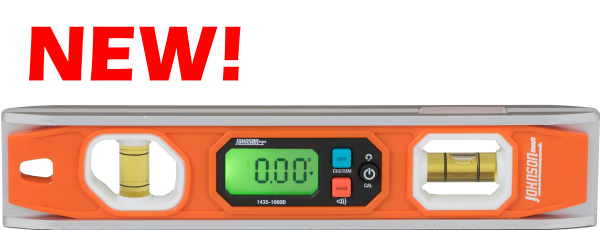

10” Magnetic Programmable Digital Torpedo Level
This magnetic programmable digital torpedo level is accurate, versatile and easy to use. Its backlit LCD provides easy viewing and automatically inverts when used overhead. The level has four units of measurement (degrees, percent, inches/feet in decimals and fractions, and millimeters/meters) and features both preprogrammed and custom modes, making it the only level you'll need for any number of uses. The powerful rare earth magnets adhere to any ferrous metal surface for easy, hands-free use, while the level's V-groove allows the frame to fit effortlessly on pipe and conduit.
+ Hover over main image to zoom
Backlit LCD display for easy viewing
LCD display automatically inverts when the level is in the inverted position
Custom Modes
Sub display for showing target setpoint
Preprogrammed 22.5° and 45° modes simplify miter cuts, conduit bends and more
Simple three-button operation
Strong rare earth magnets and V-groove top-edge
Oversized 1/2" vials for maximum durability and readability
Units of measure in degrees, percent in/ft (decimal & fraction), mm/m
IP65 construction provides complete protection against dust and is water resistant
| Accuracy: | ±0.1° at 0°/90°. 0.20° (other angles) |
|---|---|
| Power Supply: | 1 CR2032 lithium battery (not included) |
| Battery Life: | 16 Hours |
| Working Temperature: | 14°F - 122°F |
| IP Protection Class: | IP65 |
| Dimensions: | 10" x 2" x 0.75" |
| Weight: | 0.495lbs |
| Warranty: | Limited Lifetime Warranty |
| Working Range: | 0° to 90° |
| Resolution: | 0.05° or 0.08% 0.01 in/ft 1/8 in/ft 1mm/m |
This 10" magnetic electronic digital level can be used to find 22.5° or 45°, using preprogrammed modes, to simplify miter cuts, conduit bends and more. But it can also be easily customized to meet your needs using the custom mode. The level's V-groove frame fits perfectly on pipe and conduit, while the powerful rare earth magnets adhere to any ferrous metal surface for easy, hands-free use. It is a must-have for carpenters, plumbers, electricians, auto mechanics, concrete contractors and more!
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Digital Level Instruction Manual
1435-1000D Operators Manual
Product Details
This magnetic programmable digital torpedo level is accurate, versatile and easy to use. Its backlit LCD provides easy viewing and automatically inverts when used overhead. The level has four units of measurement (degrees, percent, inches/feet in decimals and fractions, and millimeters/meters) and features both preprogrammed and custom modes, making it the only level you'll need for any number of uses. The powerful rare earth magnets adhere to any ferrous metal surface for easy, hands-free use, while the level's V-groove allows the frame to fit effortlessly on pipe and conduit.
Specifications
| Accuracy: | ±0.1° at 0°/90°. 0.20° (other angles) |
|---|---|
| Power Supply: | 1 CR2032 lithium battery (not included) |
| Battery Life: | 16 Hours |
| Working Temperature: | 14°F - 122°F |
| IP Protection Class: | IP65 |
| Dimensions: | 10" x 2" x 0.75" |
| Weight: | 0.495lbs |
| Warranty: | Limited Lifetime Warranty |
| Working Range: | 0° to 90° |
| Resolution: | 0.05° or 0.08% 0.01 in/ft 1/8 in/ft 1mm/m |
Application
This 10" magnetic electronic digital level can be used to find 22.5° or 45°, using preprogrammed modes, to simplify miter cuts, conduit bends and more. But it can also be easily customized to meet your needs using the custom mode. The level's V-groove frame fits perfectly on pipe and conduit, while the powerful rare earth magnets adhere to any ferrous metal surface for easy, hands-free use. It is a must-have for carpenters, plumbers, electricians, auto mechanics, concrete contractors and more!
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Digital Level Instruction Manual
1435-1000D Operators Manual
