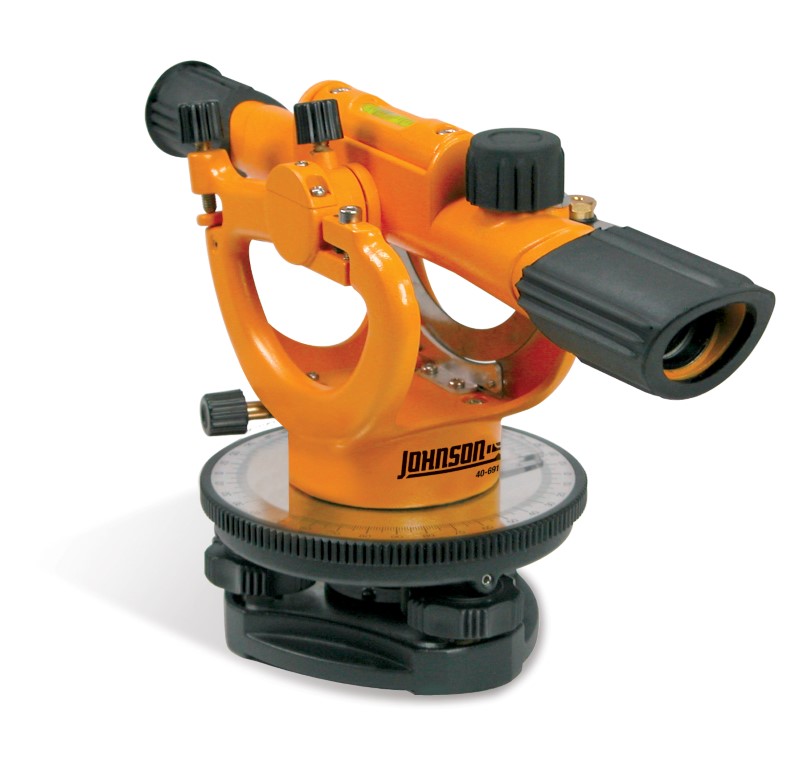

22X Builder's Transit Level
Easy to assemble, easy to use and lightweight - this builder's transit level, which consists of a leveling vial attached to a telescope, is a must-have for your next outdoor jobsite. The leveling vial is accessible to ±45° on a vertical arc, with graduations to single degrees and reads by a Vernier scale to 15 arc minutes for maximum precision. Its horizontal tangent screw and vertical lock with tangent screw give you precise movement control so your readings are accurate every time. Johnson's builder's transit level is extremely user-friendly - its built-in sunshade gives you clear sighting, and the large leveling screws are effortless to use. This level comes equipped with a hard-shell carrying case to keep your tool clean and safe when not in use. Builder's transit levels must be attached to a tripod and benefit from a grade rod - consider Johnson's Model 40-6912 builder's transit level system if you are interested in these additional tools.
+ Hover over main image to zoom
Horizontal circle - graduated to single degrees and reads by vernier direct to 15 arc minutes
Vertical Arc - reads to degrees 45-0-45
Horizontal tangent screw and vertical lock and tangent screw for precise movement control
Built-in sunshade - for clear sighting
Top mounted leveling vial - for effortless viewing
Large leveling screws - easy to turn
Versatile - ideal for leveling foundations, driveways, patios, floors, for grading street, curbs and ditches, for aligning fences; or any other light construction job

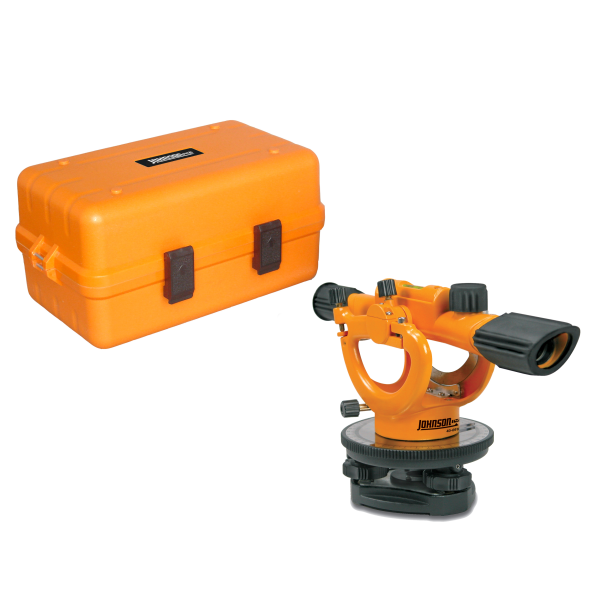

40-6910 Includes: Builder's transit level and hard-shell carrying case
| Warranty: | 3 Year Warranty | |
|---|---|---|
| Magnification: | 22X | |
| Leveling Accuracy: | ±3/16"/100' | |
| Minimum Focus: | 4' | |
| Clear Objective Aperture: | 22mm | |
| Field of View: | 1° 6' (2'/100') | |
| Level Vial: |
| |
| Stadia Constant: | 100 | |
| Graduations: | 1° | |
| Number: | Each 10°, 0-90-0° | |
| Vernier: | Double direct to 15 min. | |
| Tripod Thread: | 5/8"-11 |
Johnson's builder's transit level is a truly versatile tool for the construction field to set up level points and to check elevations. It is an optical instrument used mainly in surveying and building but is also useful for transferring, setting or measuring horizontal levels. It is ideal for leveling foundations, driveways and floors, grading streets, curbs and ditches, setting foundations and footers, drainage and much more!
