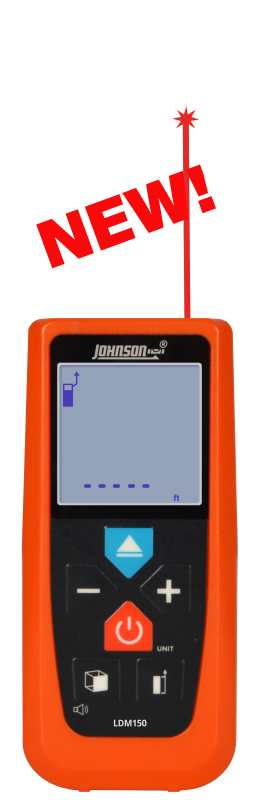

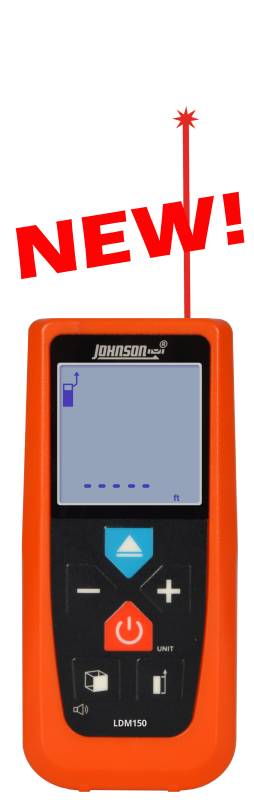

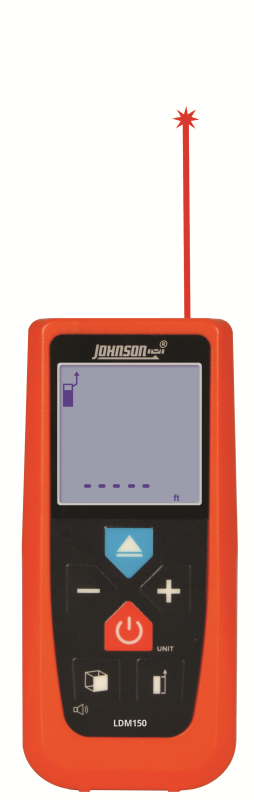

150' Laser Distance Meter

MODEL #:  LDM150

Laser distance meters accurately measure long distances in straight lines by using the reflectivity of a laser beam to calculate distance. The LDM150 is a pro-grade tool, measuring as far as 150' with 1/16" accuracy throughout the range, and is IP54 rated for use in dusty and rainy environments. This laser distance meter can measure length, area, volume, continuous and 2-Point Pythagoras (indirect) measurements.

+ Hover over main image to zoom
  • Indirect measurements: goes where a tape measure can't

  • ISO tested to accuracy of 1/16"/150'

  • 4 measurement modes: Length (single or continuous), Area, Volume and 2-Point Pythagoras

  • IP54 Rating

  • Backlit display for easy reading

LDM150 Includes > Laser, 2 "AAA" alkaline batteries, wrist strap, soft-sided pouch, quick start guide

Laser Wavelength:

650nm±10nm

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/16"/150'

Working Range:

2"-150'

Interior Range:

2"-150'

Power Supply:

2 "AAA" alkaline batteries

Battery Life:

10 hours/10,000 measurements

Working Temperature:

23°F-104°F

IP Protection Class:

54

Warranty:

2 Year Warranty

LDMs measure where a tape measure can't! The LDM150 is useful for estimating paint or flooring measurements, measuring the heights of walls and trusses, calculating warehouse space, taking indirect measurements and more!

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Laser Distance Meter Instruction Manuals

LDM 150-English
LDM 150-Quick Start Guide

Other Johnson Laser Level Support
Laser Distance Meter Comparison Chart

Replacement Soft-Sided Carrying Pouch for LDM150 and LDM195 Model: 40-6794 $13.70


Product Details

Laser distance meters accurately measure long distances in straight lines by using the reflectivity of a laser beam to calculate distance. The LDM150 is a pro-grade tool, measuring as far as 150' with 1/16" accuracy throughout the range, and is IP54 rated for use in dusty and rainy environments. This laser distance meter can measure length, area, volume, continuous and 2-Point Pythagoras (indirect) measurements.



LDM150 Includes > Laser, 2 "AAA" alkaline batteries, wrist strap, soft-sided pouch, quick start guide

Specifications

Laser Wavelength:

650nm±10nm

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/16"/150'

Working Range:

2"-150'

Interior Range:

2"-150'

Power Supply:

2 "AAA" alkaline batteries

Battery Life:

10 hours/10,000 measurements

Working Temperature:

23°F-104°F

IP Protection Class:

54

Warranty:

2 Year Warranty

Application

LDMs measure where a tape measure can't! The LDM150 is useful for estimating paint or flooring measurements, measuring the heights of walls and trusses, calculating warehouse space, taking indirect measurements and more!

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Laser Distance Meter Instruction Manuals

LDM 150-English
LDM 150-Quick Start Guide

Other Johnson Laser Level Support
Laser Distance Meter Comparison Chart

Replacement Parts

Replacement Soft-Sided Carrying Pouch for LDM150 and LDM195 Model: 40-6794 $13.70
