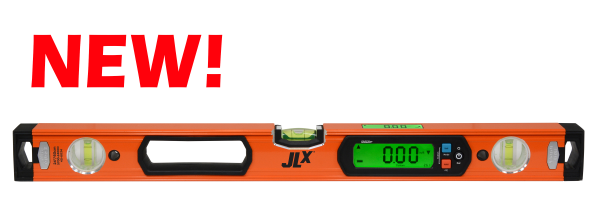

JLX® 24" Programmable Digital Level

MODEL #:  5700-2400D

Johnson's most robust and accurate digital level, the JLX® 24" programmable digital level has the accuracy and durability required for professional applications. It features pre-programmed ADA compliance, drainage and roof pitch modes that simplify measurements for the most common digital level applications, but it can also be easily customized to meet your needs. This level is easy to use - it features simple, three-button operation and its dual backlit LCD displays on the top and front put the information where you need it. Both displays automatically invert when you are taking overhead measurements. Durability is never a concern with this level - its IP65 construction provides complete protection against dust and water. It also comes with a non-marring wall grip and its crystal clear vials were designed to never fog, leak or crack. The included soft-sided case keeps your level clean and safe when not in use.

+ Hover over main image to zoom
  • Pre-programmed ADA compliance and drainage modes simplify measurements for the most common digital level applications

  • Dual backlit LCD displays on top and front puts the information where you need it

  • LCD displays automatically invert when taking overhead measurements

  • Fully temperature compensated for use in changing ambient environments

  • IP65 construction is dust proof and water resistant

  • Sub display for showing reference angles - Custom mode lets you set your own reference angles and alerts.

  • Simple three-button operation

  • GripTight™ removable non-slip end caps hold level firmly in place with just one hand

  • Crystal clear vials never fog, leak or break

5700-2400D Includes > Digital level and soft case

Accuracy:

±0.05° at 0° and 90°, 0.10° at all other angles

Working Range:

0° to 90°

Resolution:

0.05°, 0.125", 1/8", 1.25 mm, 0.1%

Battery Life:

150 hours

Power Supply:

2 AA Alkaline Batteries (not included)

Working Temperature:

14°F - 122°F

IP Protection Class:

IP65

Warranty:

Lifetime Limited Warranty

Johnson's JLX® Series products are designed for professional applications, and this digital level works perfectly as a do-it-all level when you need to find plumb, level and anything in between. This level can tackle tough jobs like setting ramp angles for ADA compliance, setting drainpipe angles for proper slope, quickly measuring the slope of any surface - such as roof pitches - directly in 12ths, calculating relative angles using the convenient hold feature and general carpentry. It just may be the only level you'll ever need!

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Digital Level Instruction Manuals

5700-2400D Quick Start Guide
5700-2400D Manual

Replacement Soft-Sided Carrying Pouch for 1876-2400, 1880-2400 and 1714-2400
Replacement Soft-Sided Carrying Pouch for 1876-2400, 1880-2400, 1714-2400, 1760-2400 and 5700-2400D Model: 1825-2400B $24.44


Product Details

Johnson's most robust and accurate digital level, the JLX® 24" programmable digital level has the accuracy and durability required for professional applications. It features pre-programmed ADA compliance, drainage and roof pitch modes that simplify measurements for the most common digital level applications, but it can also be easily customized to meet your needs. This level is easy to use - it features simple, three-button operation and its dual backlit LCD displays on the top and front put the information where you need it. Both displays automatically invert when you are taking overhead measurements. Durability is never a concern with this level - its IP65 construction provides complete protection against dust and water. It also comes with a non-marring wall grip and its crystal clear vials were designed to never fog, leak or crack. The included soft-sided case keeps your level clean and safe when not in use.



5700-2400D Includes > Digital level and soft case

Specifications

Accuracy:

±0.05° at 0° and 90°, 0.10° at all other angles

Working Range:

0° to 90°

Resolution:

0.05°, 0.125", 1/8", 1.25 mm, 0.1%

Battery Life:

150 hours

Power Supply:

2 AA Alkaline Batteries (not included)

Working Temperature:

14°F - 122°F

IP Protection Class:

IP65

Warranty:

Lifetime Limited Warranty

Application

Johnson's JLX® Series products are designed for professional applications, and this digital level works perfectly as a do-it-all level when you need to find plumb, level and anything in between. This level can tackle tough jobs like setting ramp angles for ADA compliance, setting drainpipe angles for proper slope, quickly measuring the slope of any surface - such as roof pitches - directly in 12ths, calculating relative angles using the convenient hold feature and general carpentry. It just may be the only level you'll ever need!

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Digital Level Instruction Manuals

5700-2400D Quick Start Guide
5700-2400D Manual

Replacement Parts

Replacement Soft-Sided Carrying Pouch for 1876-2400, 1880-2400 and 1714-2400
Replacement Soft-Sided Carrying Pouch for 1876-2400, 1880-2400, 1714-2400, 1760-2400 and 5700-2400D Model: 1825-2400B $24.44
