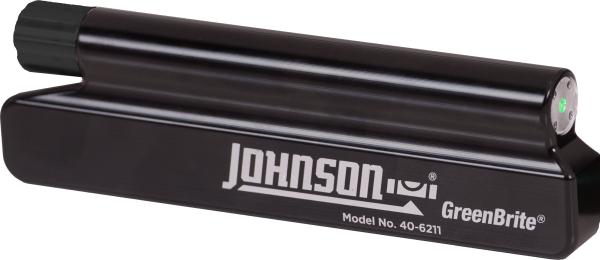

Magnetic Sheave Alignment Laser With GreenBrite® Technology

MODEL #:  40-6211

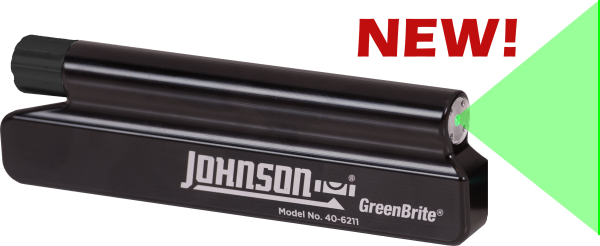

Johnson's 40-6211 sheave alignment laser features a green beam that is 400% more visible than red beam lasers, and its compact size makes it easy to use on even small diameter sheaves. With its easy and fast setup and the included pulley offset chart, you'll have everything you need to ensure your drivetrain is properly aligned.

+ Hover over main image to zoom
  • Accurate drivetrain alignment to reduce power losses, friction, bearing wear and noise

  • Detects all methods of drivetrain misalignment including offset, angle and twist

  • Rare earth magnets for secure attachment to ferrous metals

  • IP54 dust and water resistant construction

  • GreenBrite® Technology - 400% more visible than red lasers

  • Includes pulley offset chart to determine misalignment angle

  • Compact size - easy to use on small diameter sheaves

  • Fast set-up

40-6211 Includes > Green magnetic sheave alignment, three precision machined magnetic targets, 2 "AA" alkaline batteries, and soft-sided carrying case

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/16"/10'

Working Range:

Up to 100'

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

4 Hours

Working Temperature:

23°F to 104°F

IP Protection Class:

IP54

Warranty:

1 Year Warranty

Johnson's 40-6211 is the ideal tool for checking the height and flatness of motor and gear box mounting plates as well as to align pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors and other plant equipment. This sheave alignment laser will ensure drivetrain alignment to reduce power losses, friction, bearing wear and noise.

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.

Manuals
40-6211 English Manual

40-6213
Replacement Green Target for 40-6211 Model: 40-6213 $25.00
Replacement On/Off Switch (Battery Cover) for 40-6211 and 5700-0800LZR Model: 40-6313 $7.28
40-6206
Replacement Soft-Sided Carrying Pouch for 40-6201 and 40-6211 Model: 40-6206 $35.28


Product Details

Johnson's 40-6211 sheave alignment laser features a green beam that is 400% more visible than red beam lasers, and its compact size makes it easy to use on even small diameter sheaves. With its easy and fast setup and the included pulley offset chart, you'll have everything you need to ensure your drivetrain is properly aligned.



40-6211 Includes > Green magnetic sheave alignment, three precision machined magnetic targets, 2 "AA" alkaline batteries, and soft-sided carrying case

Specifications

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/16"/10'

Working Range:

Up to 100'

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

4 Hours

Working Temperature:

23°F to 104°F

IP Protection Class:

IP54

Warranty:

1 Year Warranty

Application

Johnson's 40-6211 is the ideal tool for checking the height and flatness of motor and gear box mounting plates as well as to align pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors and other plant equipment. This sheave alignment laser will ensure drivetrain alignment to reduce power losses, friction, bearing wear and noise.

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.

Manuals
40-6211 English Manual

Replacement Parts

40-6213
Replacement Green Target for 40-6211 Model: 40-6213 $25.00
Replacement On/Off Switch (Battery Cover) for 40-6211 and 5700-0800LZR Model: 40-6313 $7.28
40-6206
Replacement Soft-Sided Carrying Pouch for 40-6201 and 40-6211 Model: 40-6206 $35.28
