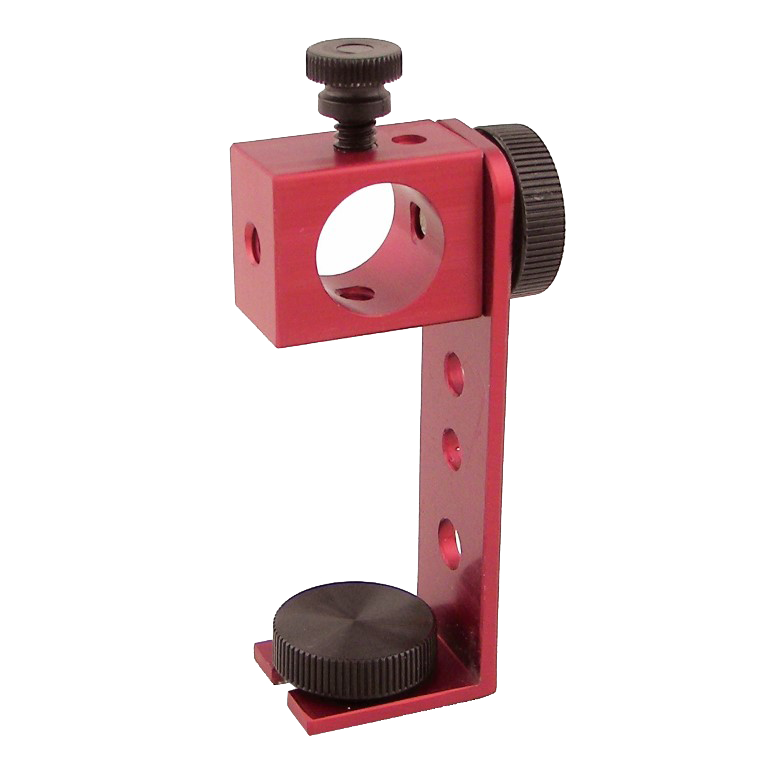

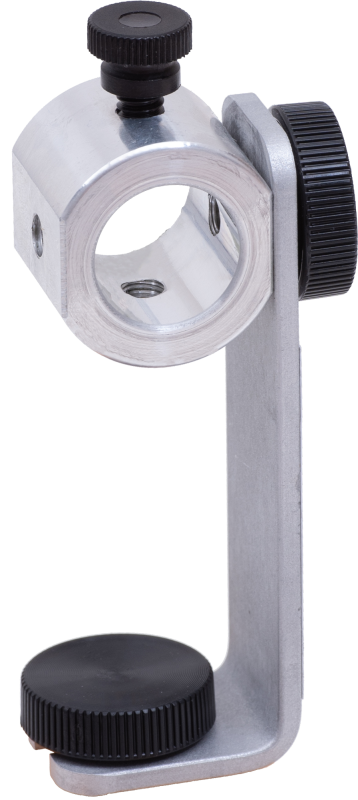

Mounting Bracket for Alignment Dot Laser 40-6220, 40-6222, 40-6224
+ Hover over main image to zoomEasy installation bracket for Industrial Alignment Laser Dots
Includes 3/4" diameter mounting block and "L" bracket
Designed to position the laser beam to the desired location
| Laser Wavelength: | 532nm (Green), 635nm+/-10nm (Red) |
|---|---|
| Laser Classification: | Class Il |
| Maximum Power Output: | Less than/Equal to 1mW |
| Beam Divergance: | 70 degree standard |
| Interior Range: | Up to 100ft. (30m) 40-6230 and 150ft. (45m) 40-6232 depending upon light conditions |
| Power Supply: | 110AC (included) |
| Dimensions: | 4" x 0.75" x 1.375" (101x19x35) |
| Weight: | 7.5 oz. (.21kg) |
| IP Protection Class: | 65 |
| Warranty: | 1 Year Warranty |
This mounting bracket was designed to use with Johnson's model 40-6220, 40-6222 and 40-6224 dot lasers. It ensures precise laser beam positioning - making it ideal for positioning parts on equipment, drill press alignment, site layout, crosscut and break measurements, grading, slope projects and more!
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level
How to Set Up a Tripod
How to Use a Laser Level with a Tripod
How to Use a Laser Level Detector
Product Details
Get the most out of your Johnson dot laser with this mounting bracket. The mounting block and "L" bracket allow you to position your laser beam to the desired location for a precise and accurate reading every time.
Specifications
| Laser Wavelength: | 532nm (Green), 635nm+/-10nm (Red) |
|---|---|
| Laser Classification: | Class Il |
| Maximum Power Output: | Less than/Equal to 1mW |
| Beam Divergance: | 70 degree standard |
| Interior Range: | Up to 100ft. (30m) 40-6230 and 150ft. (45m) 40-6232 depending upon light conditions |
| Power Supply: | 110AC (included) |
| Dimensions: | 4" x 0.75" x 1.375" (101x19x35) |
| Weight: | 7.5 oz. (.21kg) |
| IP Protection Class: | 65 |
| Warranty: | 1 Year Warranty |
Application
This mounting bracket was designed to use with Johnson's model 40-6220, 40-6222 and 40-6224 dot lasers. It ensures precise laser beam positioning - making it ideal for positioning parts on equipment, drill press alignment, site layout, crosscut and break measurements, grading, slope projects and more!
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
