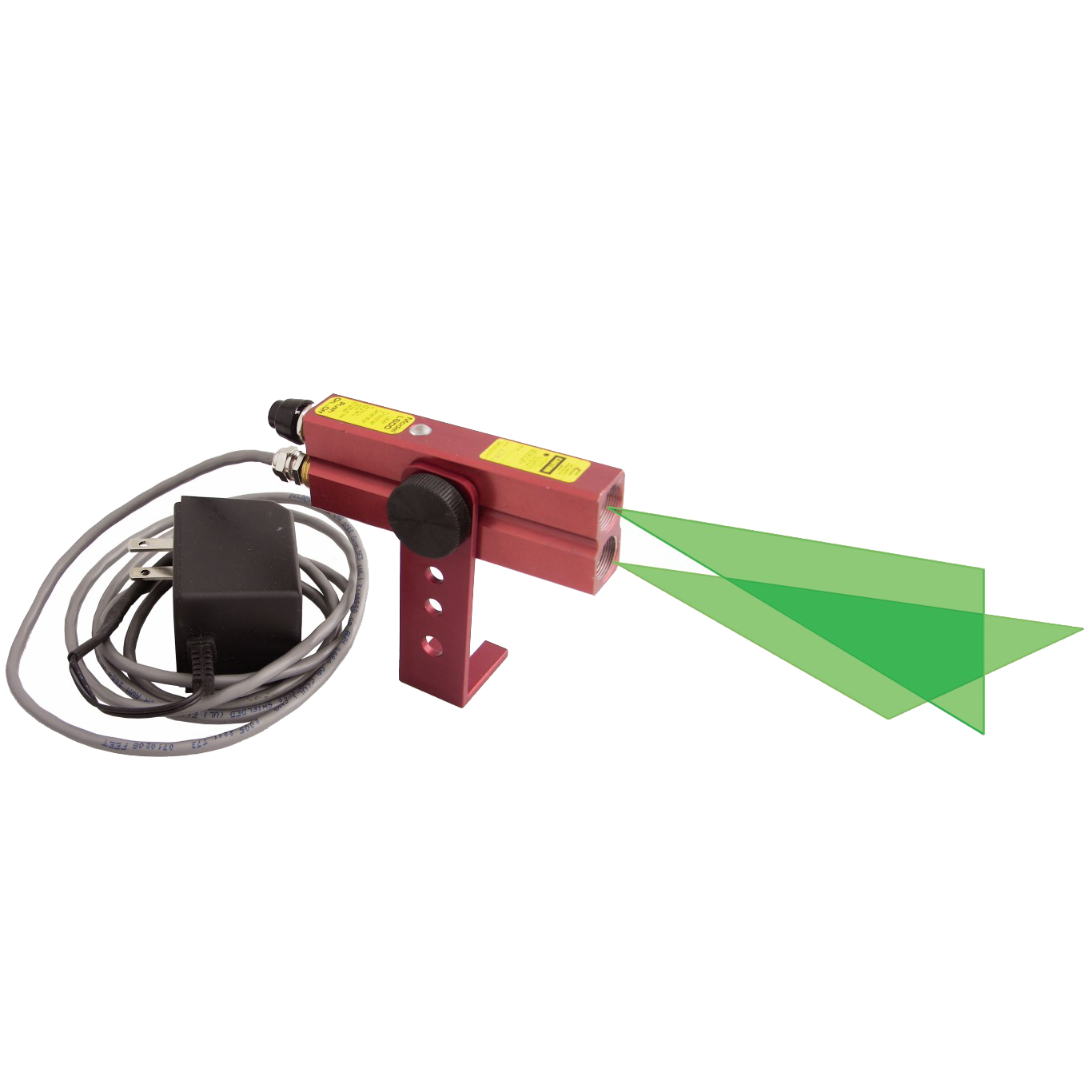

Industrial Alignment Cross-Line Laser Level with GreenBrite® Technology
Cylindrical lens technology - solid glass optical system draws a continuous line at any distance, line fan angle - 70 degrees, line widths - 1/16", push on/off switch - turn unit on and off without having to disconnect power, beam on indicator - two indicators top & bottom for easy viewing, hard anodized - scratch resistance housing, laser diode - rated for 10,000 hours of operation or 5 years normal operating condition. 40-6232 Includes > Red or green laser, 110V AC adapter, and mounting bracket.
+ Hover over main image to zoom
Cylindrical lens technology - Solid glass optical system draws a continuous line at any distance
Line fan angle - 70 degrees
Line widths - 1/16"
Push on/off switch - turn unit on and off without having to disconnect power
Beam on indicator - two indicators top & bottom for easy viewing
Hard anodized - scratch resistance housing
Laser diode - rated for 10,000 hours of operation or 5 years normal operating condition
40-6232 Includes > Green laser, 110V AC, and mounting bracket
| Laser Wavelength: | 532nm+/-10nm |
|---|---|
| Laser Classification: | Il |
| Maximum Power Output: | Less than/Equal to 1mW |
| Beam Divergance: | 70 degree standard |
| Power Supply: | 110 AC |
| Dimensions: | 4" x 0.75" x 1.375" |
| Weight: | 7.5 oz |
| IP Protection Class: | 65 |
| Warranty: | 1 Year Warranty |
| Accuracy: | 90° angle accuracy + 0.2° |
The Johnson Level 40-6232 can be used for the following indoor applications; centering parts on equipment - riveters, fluid and dry good filters, positioning parts on welders, drill press alignments, pointing, positioning, aligning, site layout, crosscut and break measurements, slope, conveyors, grade, transit work.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6232 - English
More Laser Level Support
How to Use a Line Laser Level
How to Use a Self Leveling Laser Level
How to Choose a Laser Line Level for Indoor Use Only
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level
Product Details
Cylindrical lens technology - solid glass optical system draws a continuous line at any distance, line fan angle - 70 degrees, line widths - 1/16", push on/off switch - turn unit on and off without having to disconnect power, beam on indicator - two indicators top & bottom for easy viewing, hard anodized - scratch resistance housing, laser diode - rated for 10,000 hours of operation or 5 years normal operating condition. 40-6232 Includes > Red or green laser, 110V AC adapter, and mounting bracket.
40-6232 Includes > Green laser, 110V AC, and mounting bracket
Specifications
| Laser Wavelength: | 532nm+/-10nm |
|---|---|
| Laser Classification: | Il |
| Maximum Power Output: | Less than/Equal to 1mW |
| Beam Divergance: | 70 degree standard |
| Power Supply: | 110 AC |
| Dimensions: | 4" x 0.75" x 1.375" |
| Weight: | 7.5 oz |
| IP Protection Class: | 65 |
| Warranty: | 1 Year Warranty |
| Accuracy: | 90° angle accuracy + 0.2° |
Application
The Johnson Level 40-6232 can be used for the following indoor applications; centering parts on equipment - riveters, fluid and dry good filters, positioning parts on welders, drill press alignments, pointing, positioning, aligning, site layout, crosscut and break measurements, slope, conveyors, grade, transit work.
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
